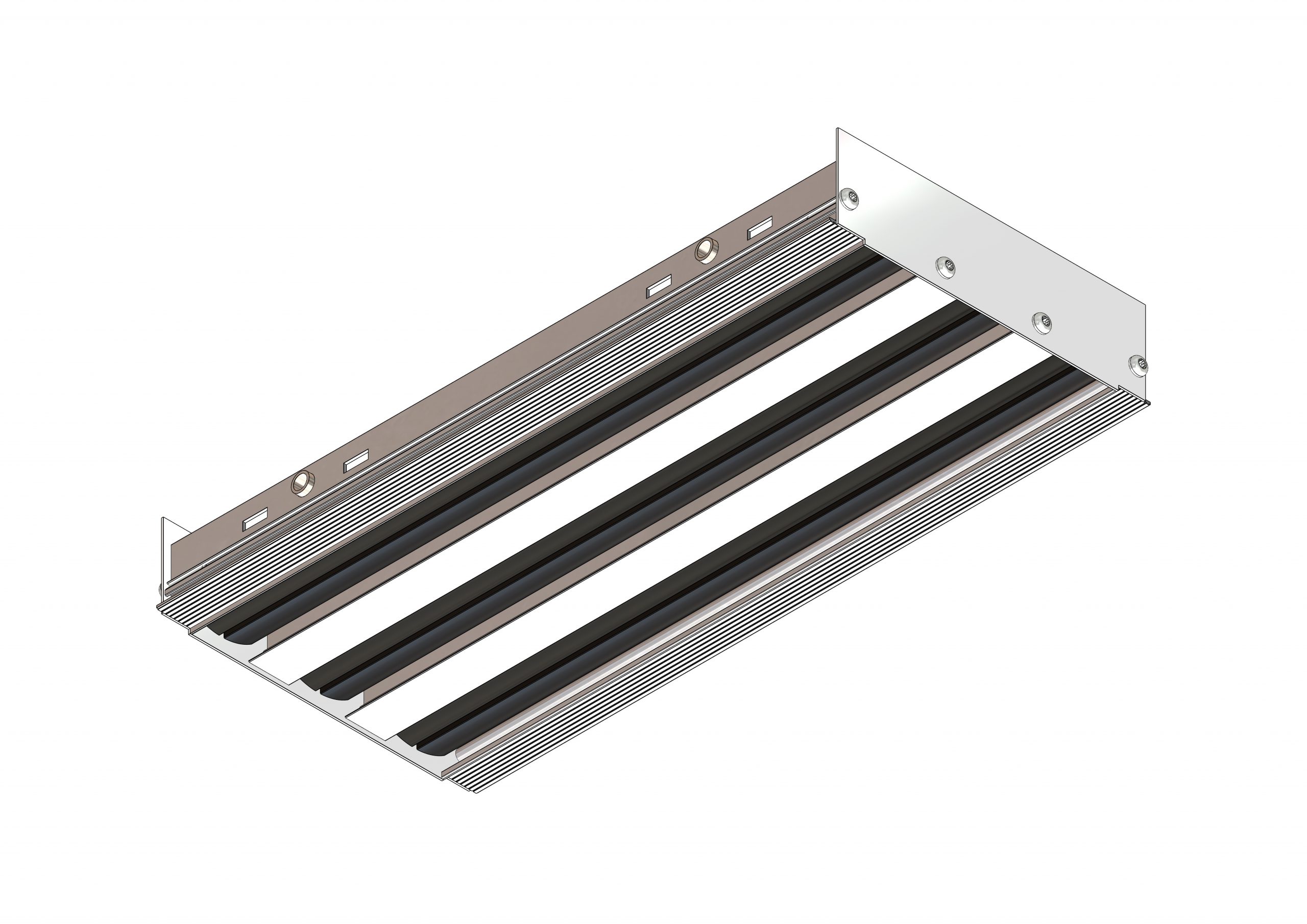

The linear diffusers LSD Lineo Slot Diffuser are air diffusers without visible frame for installation in plasterboard ceilings.

After installation, the grouting around the diffuser completely covers the edge, leaving only the slots visible.

The central deflector with double adjustment (rotation and translation) allows for a high range of air flow rates.

Technical data

• Diffusers from 1 up to 3 slots.
• Standard lengths 500, 1000, 1500 and 2000mm.
• Available on request 90° angular elements.
• Installation height between 2,6 and 6,0 m.
• Installation of the diffusers in the plenum with innovative method Quick fix.
• Diffuser and deflectors in aluminium, plenum in galvanized sheet steel
