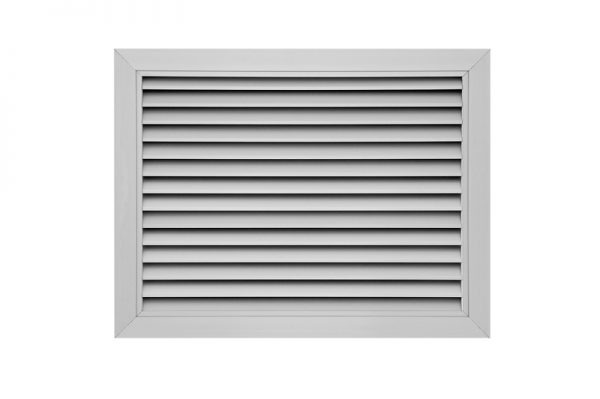

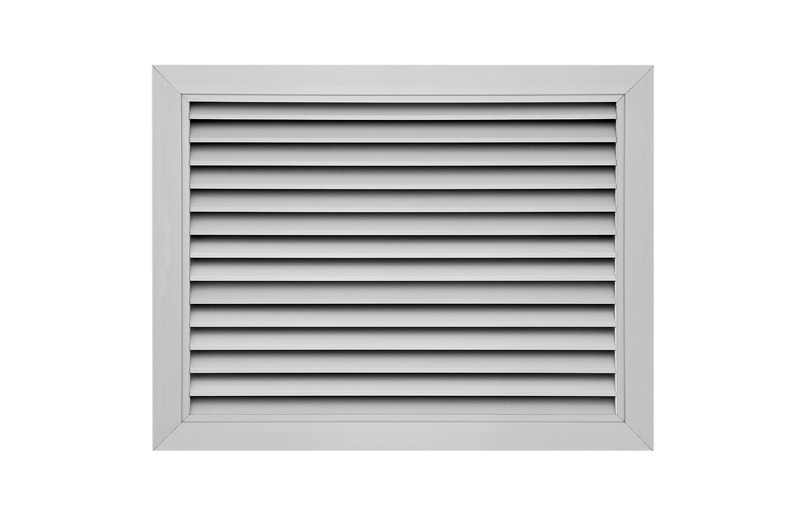

UR: Residential extract grilles 20 mm pitch in anodised extruded aluminium.

CHARACTERISTICS:

• Frame: made from extruded aluminium, 25 mm wide, with rounded edges, constructed in four parts connected invisibly by mechanical assembly.
• Fins: made of extruded aluminium with 20 mm spacing and inclined by 58°, inserted into a plastic guide support incorporated into the frame.
• Transverse reinforcement: provided on all sizes with base dimension greater than 600 mm.
• Damper, optional: all-steel, with multiple fins with opposing movement. Mounting frame, optional: sheet steel construction.
• Filter holder versions: numerous versions for both washable and rigid filter.
• Grille installation: with screwless system with clips;
• with traditional screw system directly in the duct or on the wall.
• For ceiling installations, the use of clips is not recommended.
• Finish: available in natural anodised aluminium or powder-coated RAL 9010 or RAL 9003.
• Other types of painting available on request.
